Smart Dashcam DHubX
Connect multiple AI-Powered cameras around your vehicles

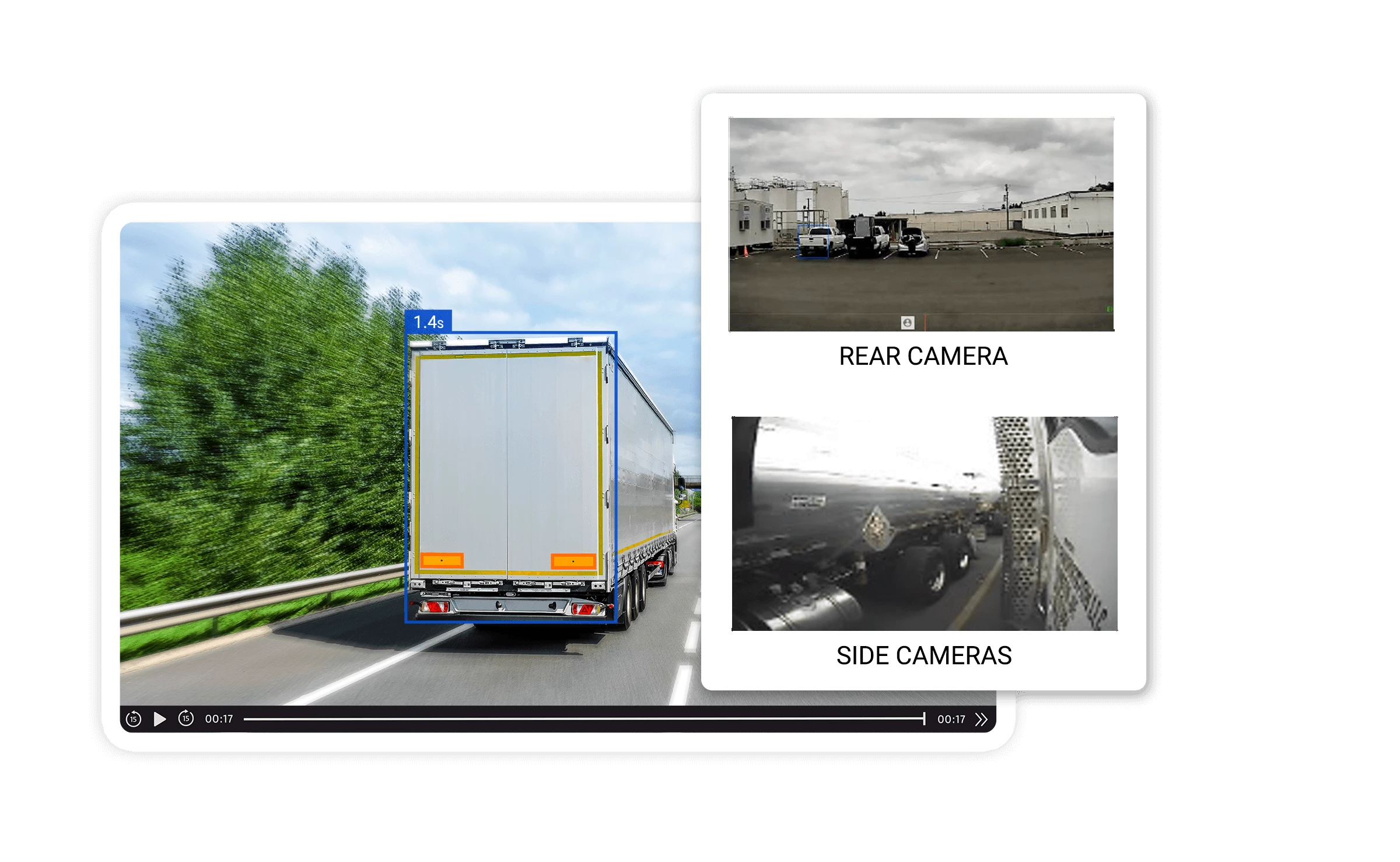

The cameras can be installed anywhere on the exterior or interior of the vehicle, giving users the flexibility to configure a solution that meets their needs. Whether you need to view a trailer for cargo monitoring, the exterior to capture the rear view or the side view of a trailer, or even the valve of a tanker, with the DHubX you have the flexibility you need. Video footage can be requested on-demand and you can get videos for coaching or event review at any time. The DHUBX includes its own storage giving you an additional 200 hours of footage in addition to the Smart Dashcam installed in the vehicle.
Features & Benefits
- Ability to connect up to four cameras with 6 views inside and around the vehicle
- Supports the connection of the Smart Dashcam dual and other IP rated cameras for external rear or side view 1
- Supports up to high definition 1080p camera quality of each individual camera connected 2
- Provides the complete functionality of each camera to detect, capture and alert on the full range of alerts including drowsiness, distraction, harsh driving, and more 3
- Up to 200 hours of footage can be recorded to the device before it begins to overwrite independent of the Smart Dashcam device 4
- Connect a supported external display in the vehicle for the driver to get a real-time view of what the cameras are capturing to improve safety 5
- Wireless connectivity to the Driveri system to provide a simpler and more flexible installation
- Supports low power wake up to allow for access to videos of all cameras, not just the Smart Dashcam devices
1 Other IP rated cameras subject to review by Teletrac Navman to ensure suitability as they may require an adapter.
2 720p default but option to upgrade to 1080p view can be set if required. Additional data charges may apply.
3 Available to Smart Dashcam devices connected to the DHUBX, all other cameras transmit footage captured only.
4 200 hours estimate depends on the number of cameras connected. This is independent of the Smart Dashcam internal storage.
5 The external monitor display is an optional extra and not included with the DHUBX.
Technical Specifications
See why this device is right for you
Video Input Interface: 1-4 Channels, DC 12v output
Storage: 256 eMMC
Access:
2 cameras - up to 200 hrs
4 cameras - up to 150 hrs
Sensors IMU (Gyro, Accelerometer, Compass)
Video standard: Supports up to 1080p resolution
Compression: Supports both PAL and NTSC
Length x Width x Height: 142mm x 148mm x 40mm
Weight: 650g
LEDs: 5
Input Voltage: 9V-36V
DC Nominal Power Consumption: 3A
Peak Power Consumption: 5A
Output Voltage (Negative): 12V / 2A (only for external display - not supported for other accessories)
Input Current (Full Operation): 12V 2500mA
Max Power Consumption: 30W
Signals Input - High Voltage (Pos): +17V
Signals Input - Low Voltage (Neg): 0V

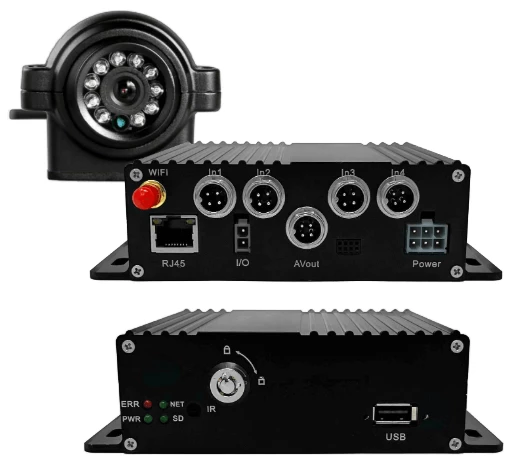

Aviation Connector for Cameras: 4
LAN Connector RJ45: 1
SMA Connector for Wi-Fi Antenna: 1
Aviation Connector for Display Power Out: 1
USB Connector: 1
SD Card Connector (Restricted User Access): 1
LED# Label State Description
LED 1 ERR Red Blink Connected to Wi-Fi
LED 2 NET No Glow Future Use
LED 3 PWR Green Solid Power On Indicator
LED 4 SD Green Solid SD Card Installed
LED 5 IR No Glow For Installers
Platform: TN360
Compatibility: D430, D120
IP-Rated external cameras (approved list only) FL750 left & right variants as a side/rear camera
What's in the box: DHUBX, Cables & Connectors, Mounts. (Additional cable lengths avail (5m, 10m, 20m)
